Vacuum Pump,4.8CFM AC Refrigerant Vacuum Pump With Gauges HVAC Refrigeration Home Vacuum Packing Air Condition Automobile Maintenance ,Outstanding Oil Inlet System

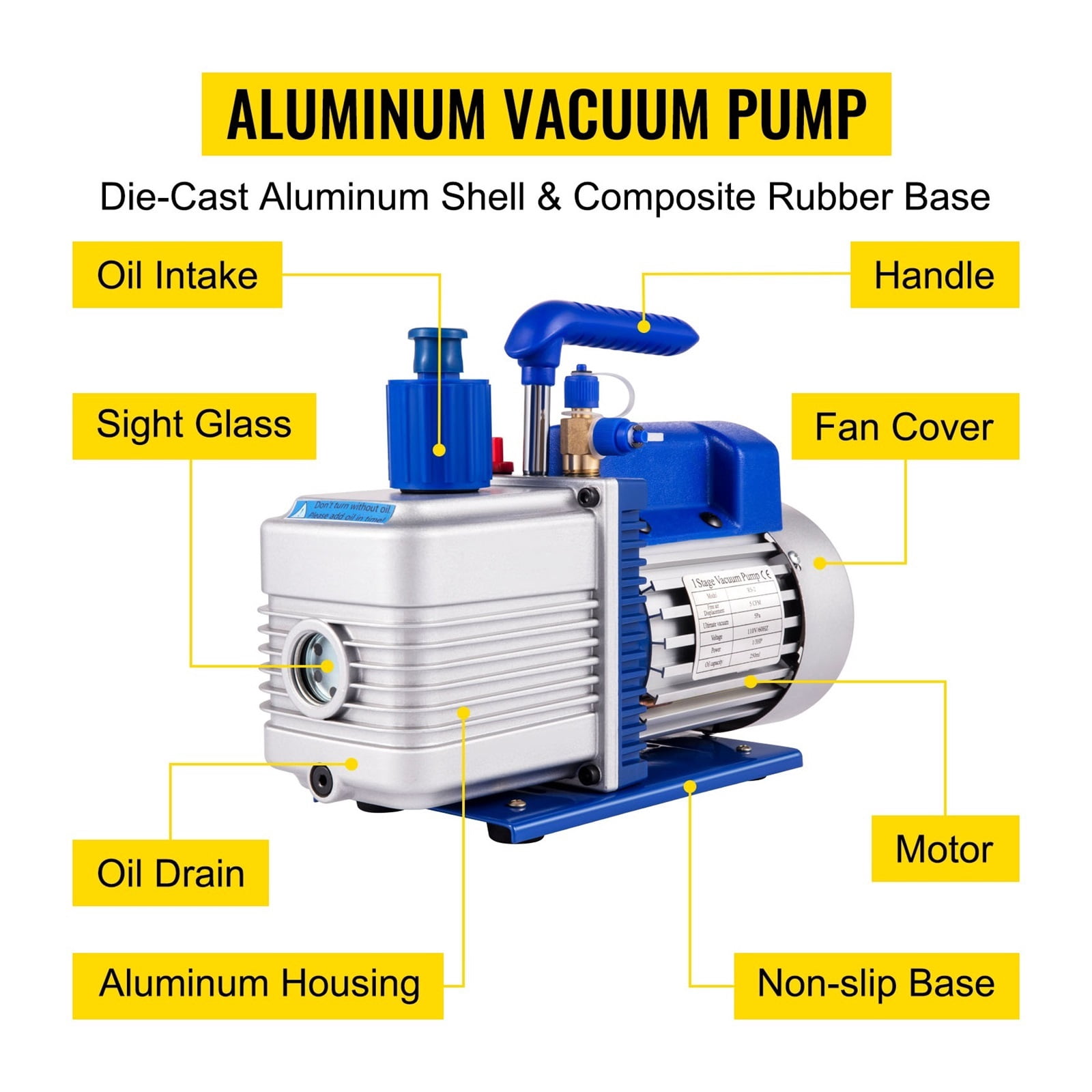

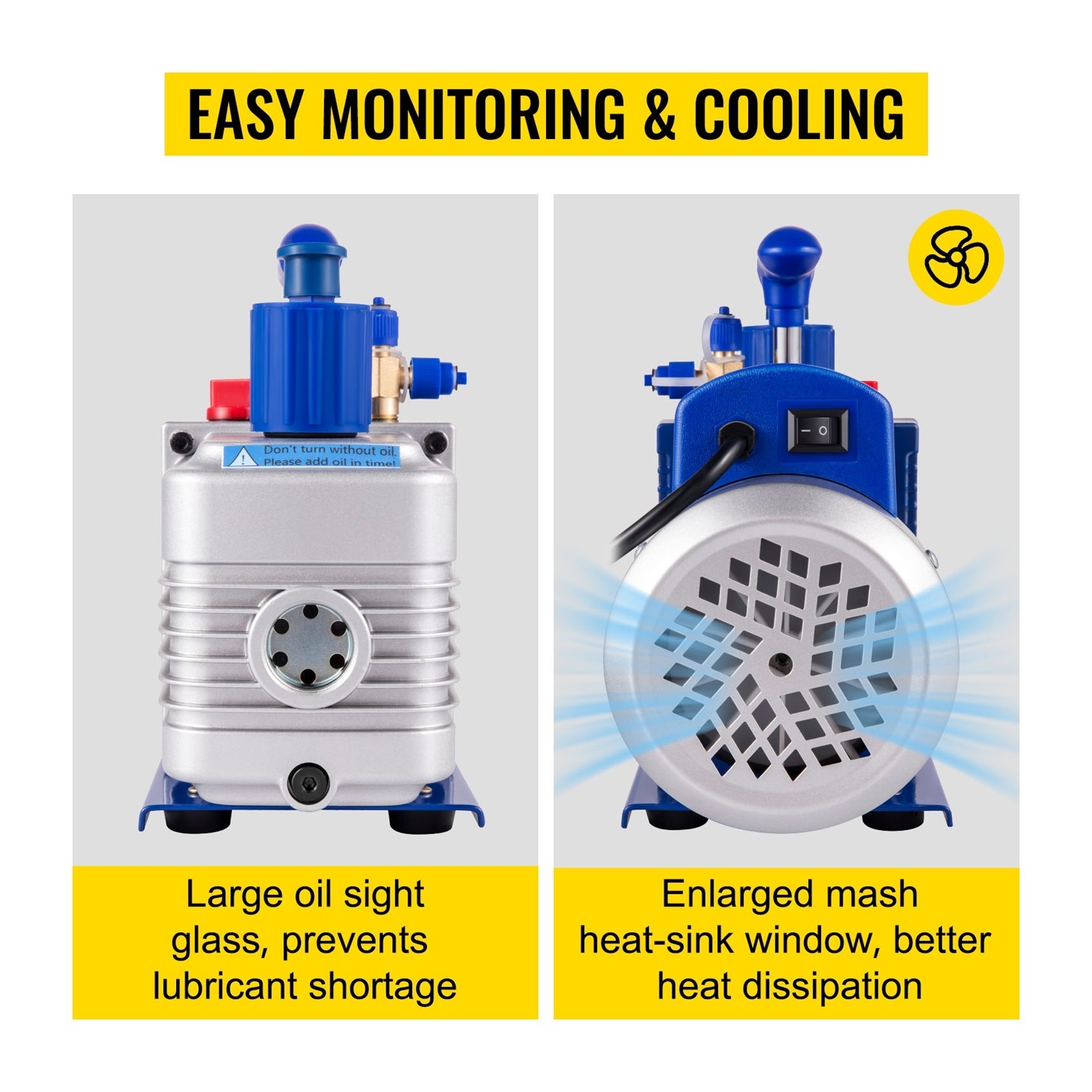

<p>Product Description</p><p>4.8CFM Refrigeration Vacuum Pump</p><p>This is a 4.8CFM Single Stage Refrigeration Vacuum Pump. The pump has a solid metal base with rubber feet. Suitable for all refrigerants. And vanes are aeronautical materials. The design is oil anti-flow back design and the system is force-feeding lubrication system. The pump has excellent heat-dissipation capacity-robust die-cast aluminum housing and cooling fan.</p><p>Please note: The oil is not included. This product cannot be used with alcohol, such as wood stabilization industries. </p><p></p><p>Key Features</p><p>Heavyduty aluminum alloy shell and copper wire motor which is sturdy and stable; four rubber soles increase the vacuum pump's stability, and non-slip rubber feet ensure minimal movement.</p><p>Viewing Windows &amp; Heat Dissipation</p><p>This vacuum pump comes equipped with an oil sight glass to monitor oil levels avoiding oil deficiency The builtin cooling fan and formatted heat dissipation window design can quickly dissipate heat and effectively protect the machine </p><p>Multifunction Manifold Gauge</p><p>The HVAC service gauge set features a sightglass for comfortable viewing the refrigerant flow a twovalve manifold with 14 SAE fittings for long times use and the highquality gauge ensures high accuracy of the reading.</p><p>Four-Color Coded Hoses</p><p>The yellow, blue, black and red hoses comply with the normal standards, and each equipped with brass fittings, which are 45 degrees on one hand and straight on the other. These four hoses are long enough for your use.</p><p>Complete Accessory Kit</p><p>This professional refrigerant tool kit includes all necessary tools you needed, including a rotary vane vacuum pump, a pressure gauge set, four hoses, adjustable quick couplers, and a heavy-duty metal carry case.</p><p>Various Application</p><p>This refrigerant kit is for maintaining air conditioning systems. It is also very suitable for household air conditioning, automobile maintenance, vacuum packaging, refrigerator vacuum, industry, etc. </p><p></p><p>Specifications</p><p>Model: ZK44.8CFM</p><p>Rotating Speed: 1440 RPM</p><p>Intake Fitting: 1/4" &amp; 38</p><p>Vacuum Pump Single Stage</p><p>Free Air Displacement 48CFM</p><p>Oil Capacity 250 ml</p><p>Ultimate Vacuum 5 Pa </p><p>Hose High Pressure 0-800 psi</p><p>Hose Low Pressure: 0-500 psi</p><p></p><p>Package Content</p><p>1 x 4.8CFM 1-Stage Refrigerant Vacuum Pump Refrigeration Gauges</p><p></p><p>Operating instructions:</p><p>1. Check the oil level, and it is appropriate to fill oil to the center of the oil mark when the pump is stopped. Too low can not play the role of oil seal on the exhaust valve, affect the vacuum degree is too high, may cause the air starting oil injection. During operation, the oil level is elevated, which is a normal phenomenon. The oil is clean vacuum pump oil of specified grade and added through the refueling hole. After refueling, screw up the . The oil should be filtered to avoid sundries entering and blocking the oil hole.</p><p>2. The pump can be started at one time through the atmosphere or any vacuum degree. If the pump port is connected with the solenoid valve, it should act at the same time as the pump.</p><p>3. When the ambient temperature is too high, the temperature of the oil will rise, the viscosity will decrease, the saturated vapor pressure will increase, and the ultimate vacuum will decrease, especially the total pressure measured by the thermocouple meter. The ultimate vacuum can be improved by strengthening ventilation and heat dissipation or by improving the performance of pump oil.</p><p>4. Check the ultimate vacuum of the pump with the compression mercury vacuum gauge. If the gauge is fully pre-pumped and verified, the pump temperature is stable, and the pump port is directly connected with the gauge, and the pump will reach the ultimate vacuum within 30 minutes of operation. The values measured by the total pressure gauge are related to the pump oil and vacuum gauge and regulatory errors, sometimes even large, and are only for reference.</p><p>5. If the relative temperature is high, or the pumped gas contains more condensable steam, it is advisable to open the gas valve after the pumped container is connected, and close the gas valve after 20-40 minutes of operation. Before stopping the pump, the valve can be opened for 30 minutes without load to prolong the life of the pump oil.</p><p>6. Oil selection: the viscosity of the pump oil affects the starting power and the ultimate vacuum of the pump. High viscosity is beneficial</p><p>Related Products:vacuum pump,hvac vacuum pump</p>

• VACUUM PUMP FAD 48CFM Single Stage; Power: 1/4 ; Ultimate Vacuum: 5PA. The vacuum pump has a die-cast aluminum housing and composite rubber base for lightweight and construction. With the low noise output and built-in thermal protection, the pump runs quieter and protects itself from burning out when something is stuck to improve working efficiency.

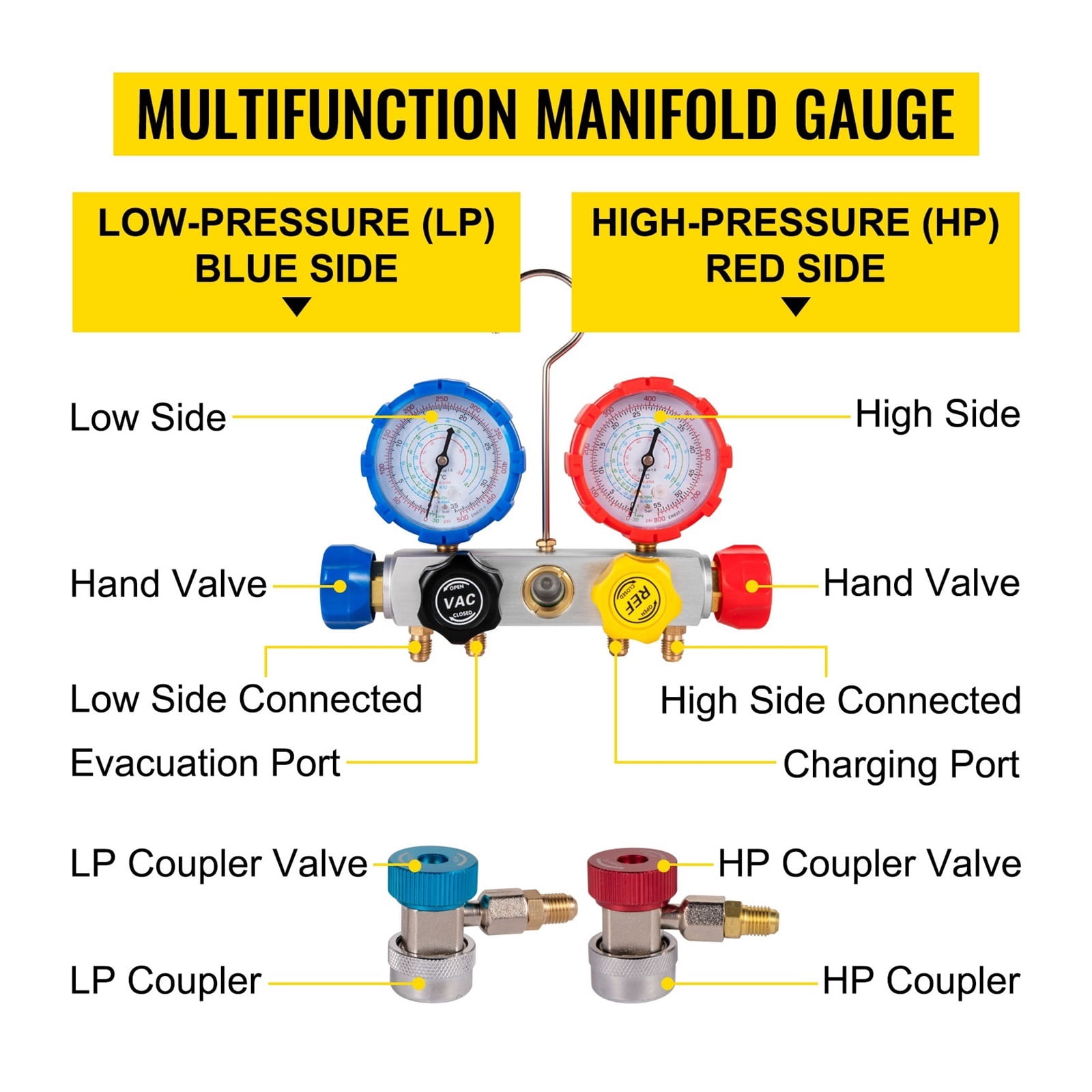

• PRECISE MANIFOLD GAUGES - The refrigeration kit has manifold gauges. The dual-pressure gauges lowing you to know the actual working pressures anytime to facilitate easy maintenance systems. Besides, the oversized sight-glass is designed for easy viewing of the refrigerant flow.
• MULTIFUNCTIONAL HOSES - Four hoses are made of premium rubber with different colors. Their brass fittings are 45 degrees on one hand and straight on the other, providing a leak-proof seal. Characterized by high working pressure and various connection sizes, the hoses can satisfy your different requirements.
• COMPLETE REFRIGERANT TOOL KIT - Our tool kit has complete accessories, including a rotary vane vacuum pump, a manifold gauge, four color-coated hose. There is a carrying case for gauge, hoses, and other accessories, so you can organize them and carry them easily. A professional refrigerant tool kit facilitates your maintain work.
• WIDE APPLICATION - The vacuum pump features a simple oil fill port for a clean pour and oil drain positioned beneath the oil reservoir. This refrigerant kit is widely applicable to household air conditioning, automotive units, refrigerators, refrigeration units, vacuum packaging, refrigerator vacuum, industry, etc.
