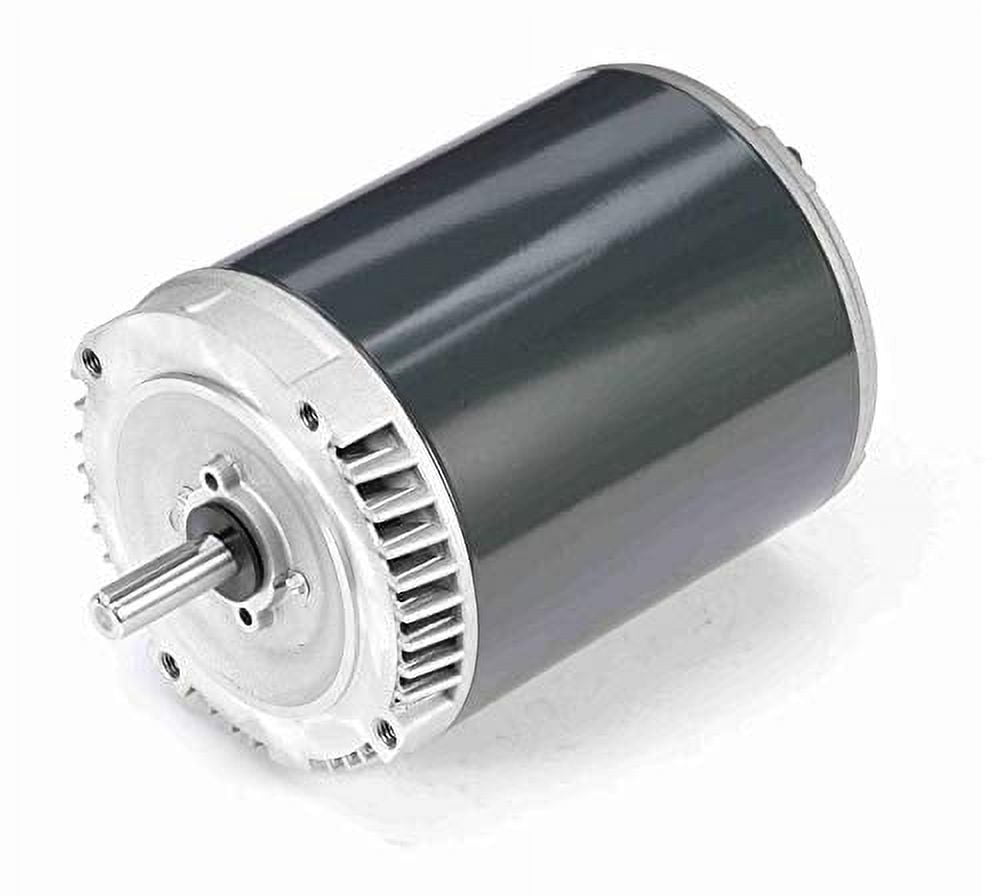

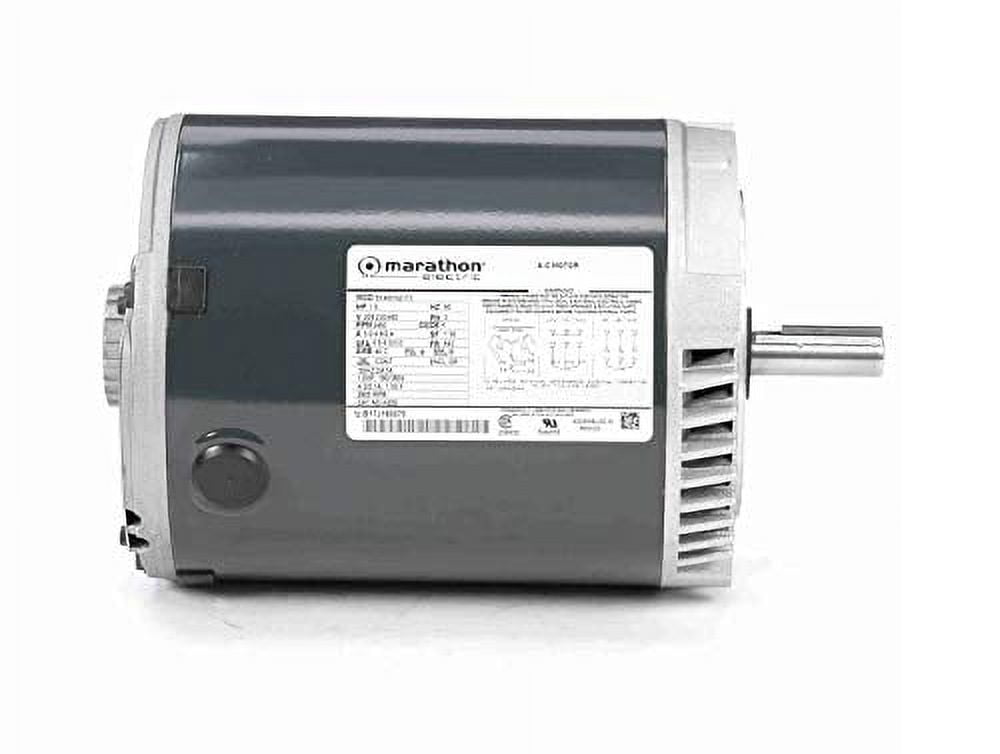

Marathon K222 56C Frame General Purpose Motor, 3 Phase, C-Face Footless, Open Drip Proof, Ball Bearing, 5.0-4.8/2.4 amp, 1-1/2 hp, 3600 rpm, 208-230/460V, Suitable for Use on VFD
Product details
| Management number | 230727126 | Release Date | 2026/06/18 | List Price | $168.20 | Model Number | 230727126 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

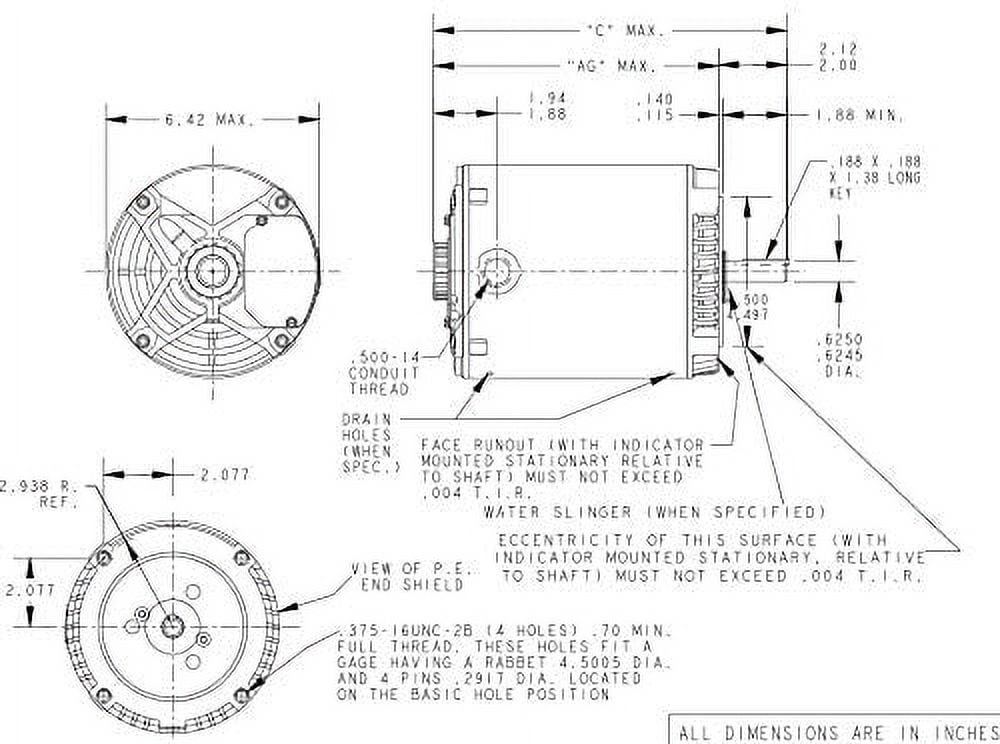

Marathon General Purpose Motor, Three Phase Suitable for use on VFD, 1-1/2 HP, 3600 RPM, 208-230/460 Volts, 5.0-4.8/2.4 Amps, 56C Frame, C-Face Footless, Open Drip Proof, Ball Bearing, C-Dimension - 10.73, Material - Rolled Steel, Connected for CW rotation (Canadian standard) facing opposite shaft end. Reversible by reconnection of leads, Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower, 1.30 Service Factor.
- 1-1/2 HP
- 3600 rpm
- General Purpose
| Horsepower | 1.5 HP |
|---|---|
| Electrical phase | Three Phase |
| Maximum motor speed | 3600 rpm |
| Amps | 5.0 Amps |
| Brand | Marathon Electric |
| Has written warranty | No |
| Model | K222 |
